Small Size Axis Analog Magnetic Sensors
Overview
The HMC104X and HMC105X family of magnetoresistive sensors offer a compact and highly reliable solution for low field magnetic sensing. The advantages of these patented chips include orthogonal precision two-axis sensing (HMC1052L) in a miniature surface mount package. Each of the magneto-resistive sensors are configured as a four-element Wheatstone bridge to convert magnetic fields to differential output voltages. These sensors also include patented on-die straps for offset and set/reset functions.

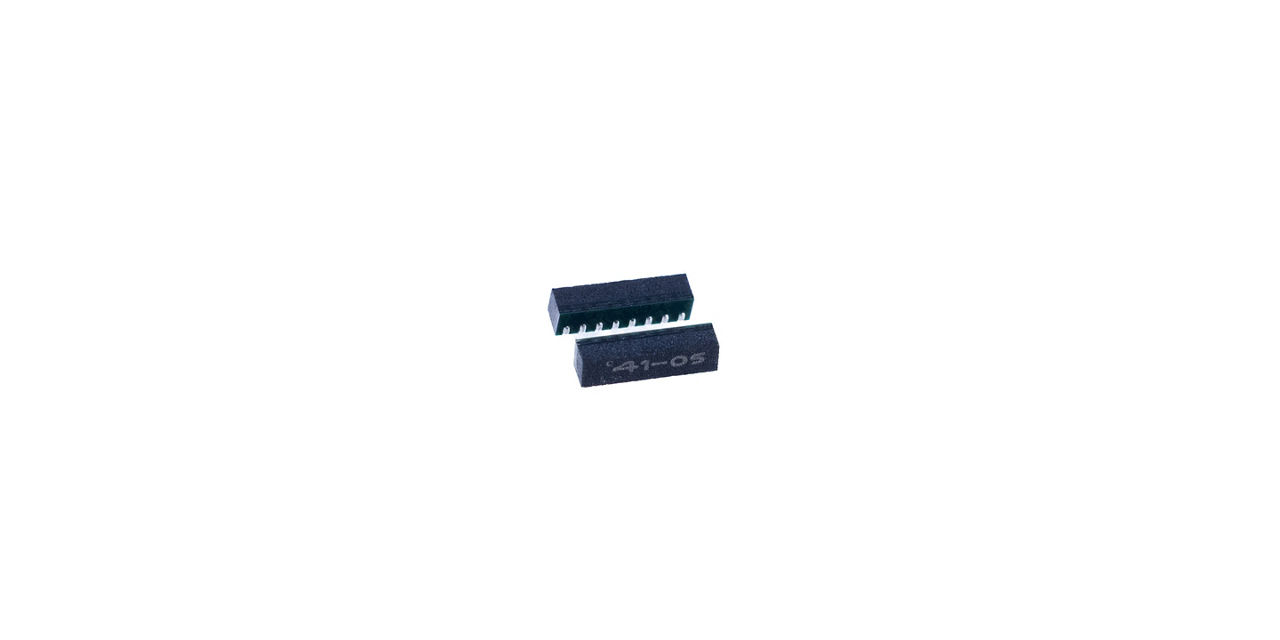

Our HMC104X family of very small size magnetoresistive sensors permits cost effective, high performance and space-efficient applications. The subminiature size and low-height (1.05 mm) of the HMC1041Z makes this sensor ideal for highly integrated, portable products like global positioning systems (GPS) receivers and watches.
Products in this family include:
Our HMC104X family of very small size magnetoresistive sensors permits cost effective, high performance and space-efficient applications. The subminiature size and low-height (1.05 mm) of the HMC1041Z makes this sensor ideal for highly integrated, portable products like global positioning systems (GPS) receivers and watches.
Products in this family include:
- HMC1041Z
- HMC1051Z
- HMC1051ZL
- HMC1052L

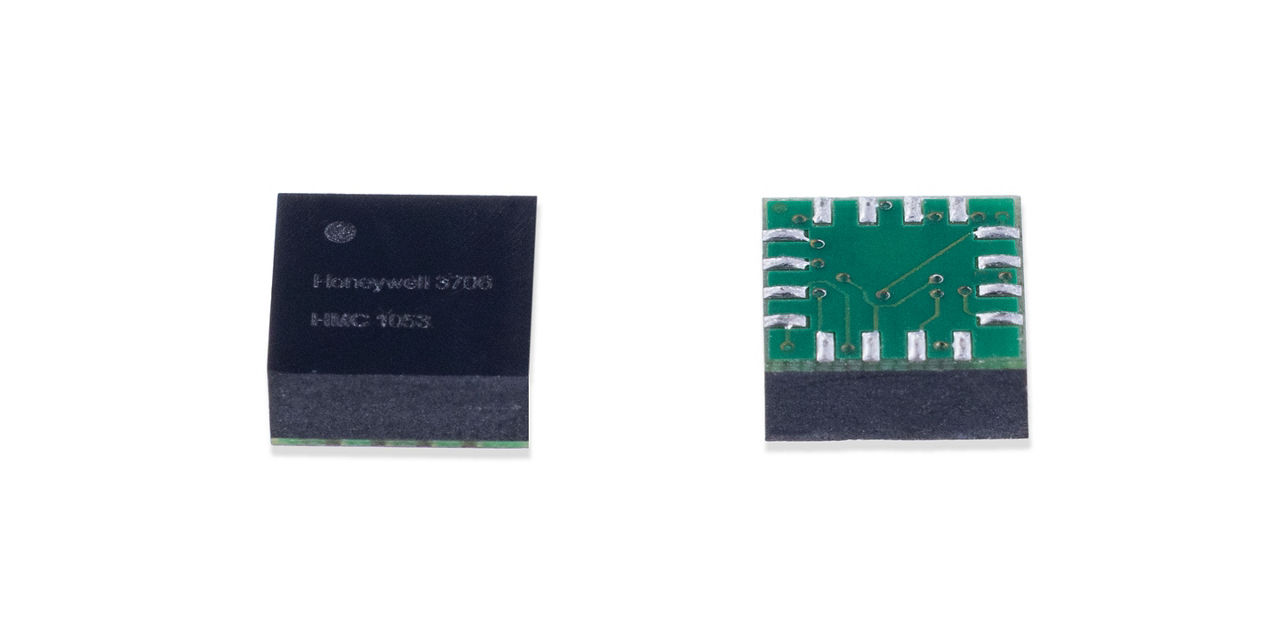

- HMC1053
Specifications
Size
- 1.5”x4.2”x0.88” (HMR3000) millimetre
- 10 mm x 3.9 mm x 1.5 mm (HMC102X) millimetre
- 12.7 mm x 7.3 mm x 2.5 mm (HMC100X) millimetre
- 1”x1.45”x0.4” (HMR3300) millimetre
- 3 mm x 3 mm x 0.8 mm (HMC104X) millimetre
- 3 mm x 3 mm x 1 mm (HMC105X) millimetre
- 9 mm x 9 mm x 1.9 mm (HMC6343) millimetre
Board Area (2 Axis)
- 10 mm² (HMC104X)
- 128 mm² (HMC100X)
- 15 mm² (HMC105X)
- 60 mm² (HMC102X)
Offset Strap Coil Constant
- 10 mA/gauss (HMC104X)
- 10 mA/gauss (HMC105X)
- 4.6 mA/gauss (HMC102X)
- 51 mA/gauss (HMC100X)
Magnetic Field Range
- ± 1.5G (HMC6343)
- ± 1G (HMR3000)
- ± 2G (HMR3300)
Types of Products
- HMC1001, HMC1002, HMC2003, HMR2300
- HMC1021S, HMC1021Z, HMC1022, HMC1041Z, HMC1051Z, HMC1052L, HMC1053, HMC1501, HMC1512, HMC6343
- HMR3000, HMR3300
Temperature Range
- -20°C to 70°C (HMR3000)
- -40°C to 85°C (HMC6343)
- -40°C to 85°C (HMR3300)
Cross Axis Effect
- 0.3% (HMC102X)
- 0.3% (HMC104X)
- 0.5% (HMC100X)
- 3.0% (HMC105X)
Repeatability
- 0.3° (HMC6343)
- ± 0.3° (HMR3000)
- ± 0.4° (HMR3300)
Key Benefits
- Our magnetoresistive sensors are sensitive enough to determine the change in magnetic fields due to the presence of nearby ferromagnetic objects.
- With a bandwidth up to 5MHz, our sensors detect vehicles and other ferrous objects, even at high speeds.
Sensitivity
- 1.0 mV/V/Gauss (HMC102X) Percentage
- 1.0 mV/V/Gauss (HMC104X) Percentage
- 1.0 mV/V/Gauss (HMC105X) Percentage
- 3.2 mV/V/Gauss (HMC100X) Percentage
Resolution
- 0.1° (HMC6343)
- 0.1° (HMR3000)
- 0.1° (HMR3300)
Linearity
- 0.05% FS (± 1G) (HMC102X)
- 0.05% FS (± 1G) (HMC104X)
- 0.05% FS (± 1G) (HMC105X)
- 0.1% FS (± 1G) (HMC100X)
Accuracy
- ± 0.5° (At Level) (Typical) (HMR3000)
- ± 1° (At Level) (Typical) (HMR3300)
- ± 2° (At Level) (Typical) (HMC6343)
Orthogonal Axis Alignment
- 1.0° (HMC102X)
- 1.5° (HMC100X)
- <0.01° (HMC104X)
- <0.01° (HMC105X)
Field Resolution
- 120 °Gauss (HMC104X)
- 120 °Gauss (HMC105X)
- 27 °Gauss (HMC100X)
- 85 °Gauss (HMC102X)
Field Range
- ± 2 Gauss (HMC100X)
- ± 6 Gauss (HMC102X)
- ± 6 Gauss (HMC104X)
- ± 6 Gauss (HMC105X)
Angle Range
- ±45° with <0.07° resolution (HMC1501)
- ±90° with <0.05° resolution (HMC1512)
Tilt Range
- ± 40° (HMR3000)
- ± 60° (HMR3300)
- ± 80° (HMC6343)
Set/Reset Current
- 0.5 Amps (HMC102X)
- 0.5 Amps (HMC104X)
- 0.5 Amps (HMC105X)
- 3.0 Amps (HMC100X)
Supply Voltage
- 1.8 - 25 Volts (HMC104X)
- 1.8 - 25 Volts (HMC105X)
- 5 - 12 Volts (HMC100X)
- 5 - 25 Volts (HMC102X)
Power
- 2.7 to 3.6 V (HMC6343) Watt
- 6 to 15 VDC (HMR3000) Watt
- 6 to 15 VDC (HMR3300) Watt
Interface
- I2C (HMC6343)
- RS232/485 (HMR3000)
- UART/SPI (HMR3300)
