AeroCruze 100 Autopilot
Overview
Choose the Right Fit

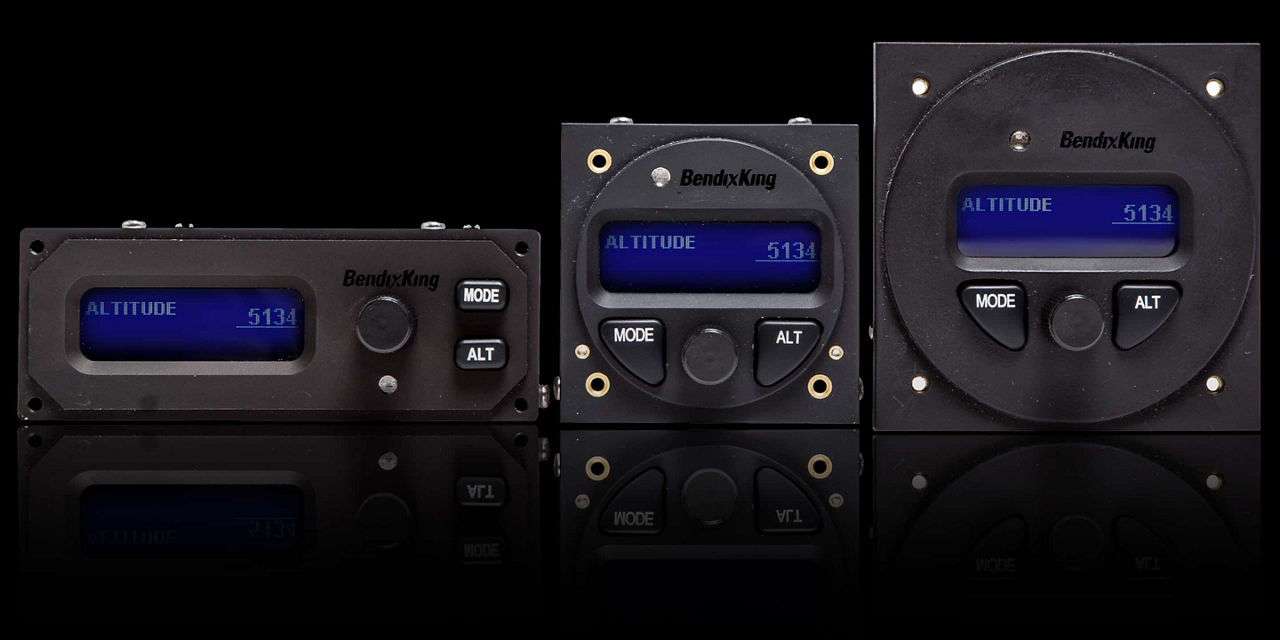

The AeroCruz 100 complete system is offered at a low cost, with the choice of three form-factor variations:
The AeroCruz 100 complete system is offered at a low cost, with the choice of three form-factor variations:
- 2 inch round
- 3 inch round
- Flat pack
- Emergency autopilot level button helps to bring the aircraft to a wings-level position.
- Connects to either hand-held GPS or IFR panel mount GPS systems.
- When connected to hand-held GPS, AeroCruze follows programmed flight plans.
- When connected to panel mount GPS, the autopilot follows roll steering commands to fly complex flight plans.
Compatible Platform
Cessna 172
Cessna 175
Cessna 177
Cessna 180
Cessna 182
Cessna 185
Mooney M20B
Mooney M20B-K
Mooney M20C
Mooney M20D
Mooney M20E
Mooney M20G
Mooney M20H
Mooney M20I
Mooney M20J
Piper PA 28
Piper PA 32
Specifications
Power Requirements
- 12-28 Volt Variants
Key Benefits
- Altitude Hold
- Altitude Pre-select
- Altitude Select
- Built-in Ground Track DG
- Control Wheel Steering
- GPS Nav Mode
- GPS Steering Mode
- GTwo Standard Servos
- Pitch Trim Annunciation
- Track Select Mode
- VS Select Mode
- Vertical GPS Steering Mode
Dimensions
- 2 Inch Round: 2.5 Inch H x 2.5 Inch W x 5.5 Inch D
- 2 in Round: 2.5 in H x 2.5 in W x 5.5 in D
- 3 Inch Round: 3.25 Inch H x 3.25 Inch W x 5.5 Inch D
- 3 in Round: 3.25 in H x 3.25 in W x 5.5 in D
- Flat Back: 1.6 Inch H x 4.3 Inch W x 6.1 Inch D
- Flat Back: 1.6 in H x 4.3 in W x 6.1 in D
