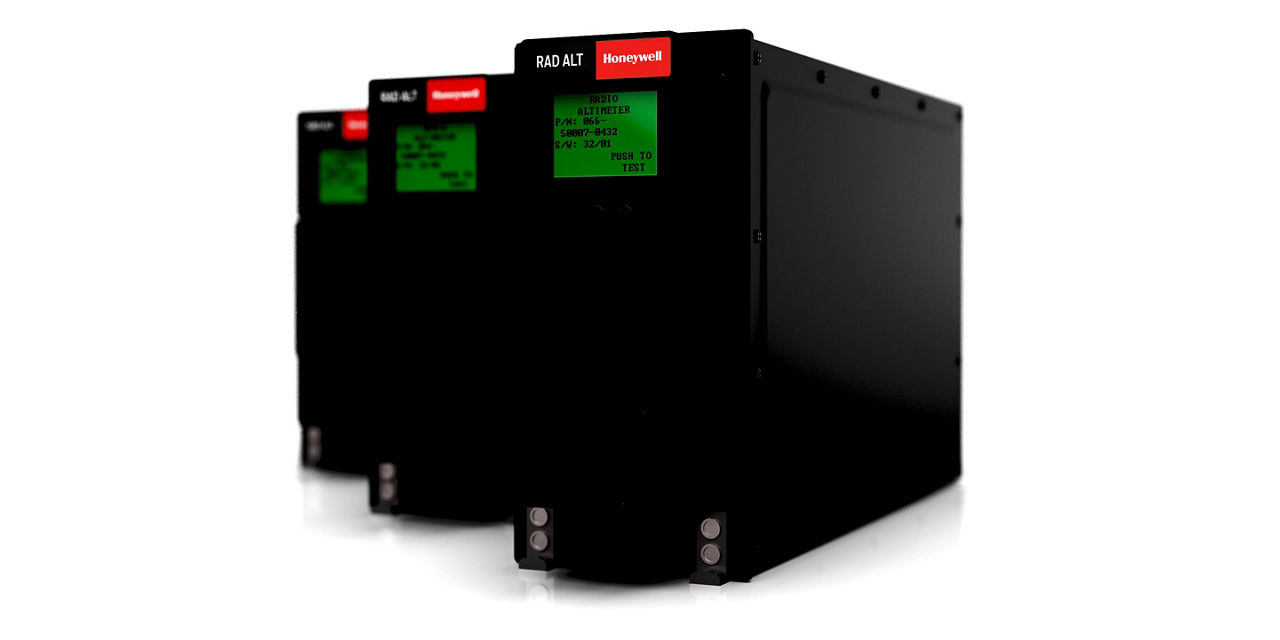

ALA 52B Radar Altimeter
Overview
The ALA-52B radar altimeter takes the worry out of instrument landing at hundreds of U.S. airports. Honeywell’s unique design filters out 5G broadband interference so airlines can land safely and without restriction at night and in any weather conditions.
Electromechanical interference testing proved the ALA-52B is the only currently available radar altimeter to show almost no sign of 5G interference.The ALA-52B creates the smallest protection radius available today – much smaller than any competing radar altimeter. The protection radius is the distance between a 5G base station and an aircraft. The smaller the protection radius, the more airports an aircraft can access without landing or navigation restrictions.
Airbus and Boeing have received Alternative Means of Compliance (AMOC) certification from the FAA, which means that the Honeywell ALA-52B can be installed with minimal downtime on a wide range of models, including the Airbus A318, A319, A320, A321, A330 and A340, and the Boeing 717, 737, 747, 757, 767, 777 and 787.
The ALA-52B is the ideal solution for domestic airlines and international carriers that fly wide-body aircraft into any of the 300-plus impacted U.S. airports.
Electromechanical interference testing proved the ALA-52B is the only currently available radar altimeter to show almost no sign of 5G interference.The ALA-52B creates the smallest protection radius available today – much smaller than any competing radar altimeter. The protection radius is the distance between a 5G base station and an aircraft. The smaller the protection radius, the more airports an aircraft can access without landing or navigation restrictions.
Airbus and Boeing have received Alternative Means of Compliance (AMOC) certification from the FAA, which means that the Honeywell ALA-52B can be installed with minimal downtime on a wide range of models, including the Airbus A318, A319, A320, A321, A330 and A340, and the Boeing 717, 737, 747, 757, 767, 777 and 787.
The ALA-52B is the ideal solution for domestic airlines and international carriers that fly wide-body aircraft into any of the 300-plus impacted U.S. airports.
Compatible Platform
Airbus A318
Airbus A319
Airbus A320
Airbus A321
Airbus A330
Airbus A340
Boeing 717
Boeing 737
Boeing 747
Boeing 757
Boeing 767
Boeing 777
Boeing 787
Specifications
Accuracy
- ± 1.5 feet (± 0,46 metres) or 2%, whichever is greater
Roll & Pitch
- Roll ± 40º Pitch ± 20º
Operating Range
- -20 to +8000 feet
- -6,1 to 2438 metres
Key Benefits
- 3 multifunction concept unit (MCU) form factor
- Enhanced multipath and double bounce rejection
- Fast Fourier transform algorithm and display select panel (DSP) processing improves accuracy
- Software certified to DO-178B, Level A
Weight
- 3.9 kg
- 8.6 lbs.
Software
- Certified to DO-178B, Level A
Output
- 1 watts (Nominal)
Frequency
- 4.2 GHz to 4.4 GHz
Antennas
- The ALA-52B RALT requires two antennas; one for transmitting and one for receiving the RF signals, and a multifunction or dedicated indicator for display of altitude information.
Primary Power
- 115 Vac, 380 to 420 Hz
Operating Temperature
- -67ºF to +158ºF
- 55ºC to +70ºC
Certifications
- ARINC 707-6
- EUROCAE ED-30
- FPGA certified to DO-254 Level A
