Air Data Computers
The ADC provides air data parameters, including Static Source Error Correction (SSEC), altitude, airspeed, and air temperature information to the aircraft. The outputs are communicated to other aircraft systems via various methods including analog DC and digital buses.
The Commercial ADCs are TSO C106 certified, meeting DO-178 design assurance level A and DO-160 environmental requirements and are Reduced Vertical Separation Minima (RVSM) compliant.
The Defense ADCs are designed for rugged environments and can provide alternative communication outputs, such as 1553 I/O.Air Data Products Provide Accurate Airspeed, Altitude, Temperature and Altitude Rate Data Critical to Flight Safety with:
- Standalone computation provides industry-leading size, weight and power (SWAP), enabling increased fuel performance
- Industry-leading sensor stability with our silicon pressure sensors and transducers as well as excellent long-term stability for reduced maintenance
Compatible Platform
Specifications
Accuracy
- 0.02% Ps, Pt Full Scale
Key Benefits
- Extensive field history with long service life
- Proven solid-state silicon sensor technology provides long-term stability
Weight
- 1.6 lbs / 0.71 kg (w/o fittings) (Defense ADC)

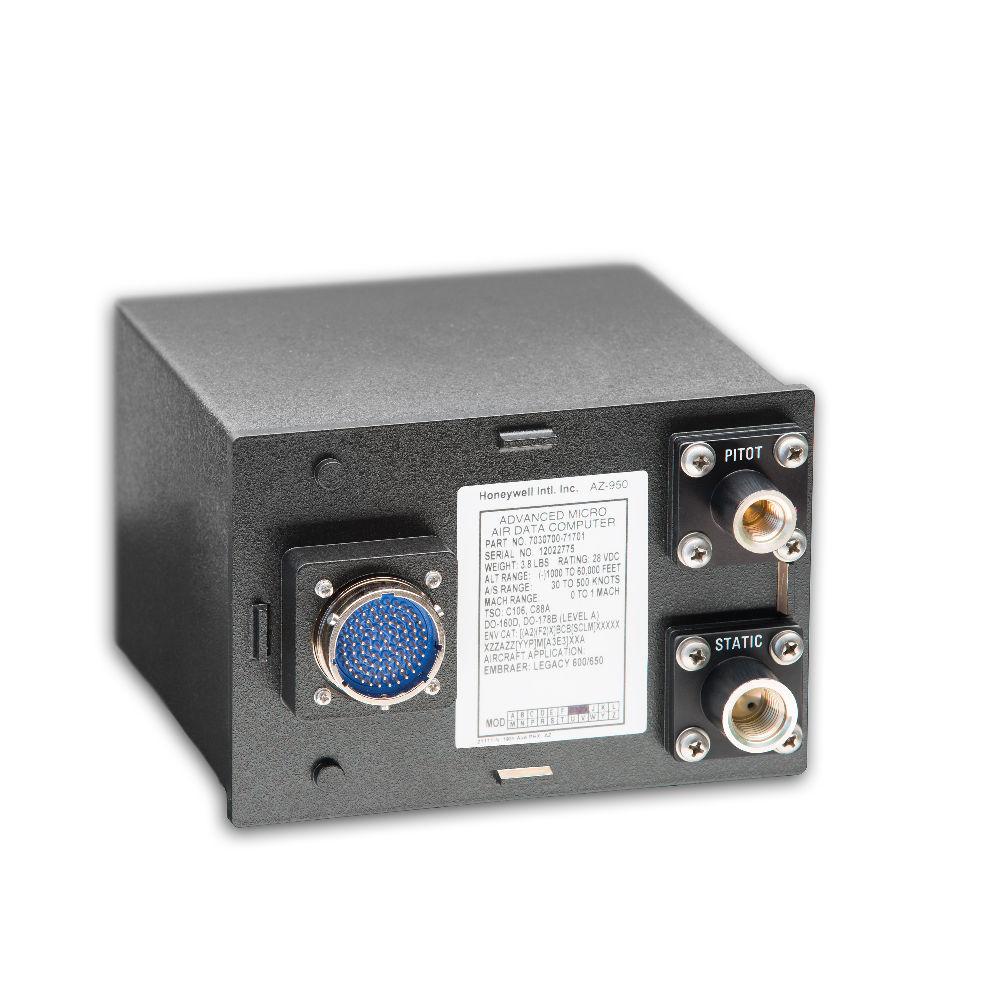

- 4.5 lbs. max (w/o fittings) (Commercial ADC - AZ-950)
Power
- 28 VDC Watt
Digital Communication Input
- 1553 I/O
- ARINC 429
Certification
- Environmental qualification: DO-160D
- Hardware certification: DO-254 Level A
- Software certification: DO-178B Level A
- Technical standard order (TSO and ETSO): C106
