HG9900 Inertial Measurement Unit

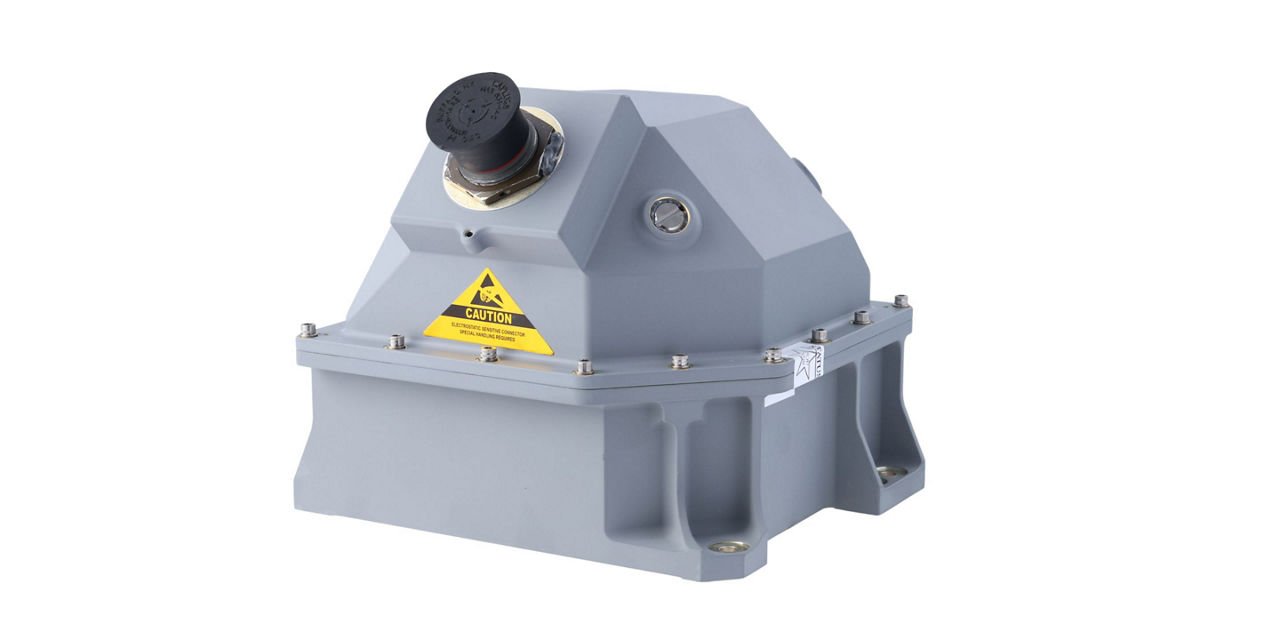

The HG9900's three Ring Laser Gyroscopes (RLGs), three Quartz Accelerometers (QAs) and associated electronics are all environmentally sealed in rugged aluminum housing. In addition, it employs an internal environmental isolator system to filter unwanted sensor inputs commonly encountered in real world applications. Honeywell Aerospace designs, develops and manufactures all of the inertial sensors utilized in the HG9900 IMU. All of this culminates in the HG9900 providing industry leading inertial sensor performance while maintaining minimal SWAP parameters.
The HG9900 is designed and built at a Honeywell Aerospace facility in the USA. It typically has an ECCN of 7A003.d but can vary depending on model selected. It generally requires an export license
Specifications
Accel Bias In-Run Stability (mg 1σ)
- 0.025
Gyro sensor technology
- Ring Laser
Gyro Operating Range
- ±550 deg/sec
Gyro Bias Repeatability
- 0.0041 deg/hr °∕hr 1σ
Gyro Bias In-Run Stability
- 0.0021 °∕hr 1σ
Gyro ARW
- 0.0021 deg/√hr
Accelerometer Sensor Technology
- Quartz
Accelerometer Operating Range
- ±20 g standard, up to ±70 g available
Accel Velocity Random Walk (VRW)
- 0.0025 fps/√hr
Accel Bias Repeatability (mg 1σ)
- 25 micro g
Supply Voltage
- 5, ±15 Vdc
Power Consumption (Typical)
- < 10 watts
Operating Temperature
- Thermal Operating Range -40°C to +71°C
Dimensions
- 138 mm x 139 mm x 163 mm
- 5.42 in x 5.48 in x 6.4 in.
Data Rate
- 300 Hz
Communication Protocols
- RS-422
