GPSdome-SunStone
Overview

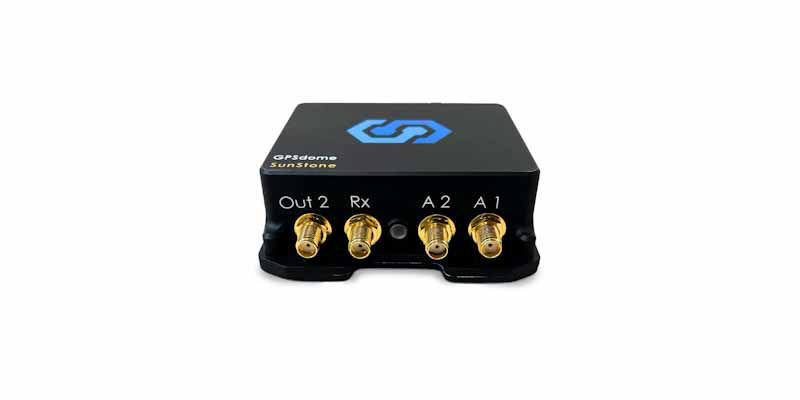

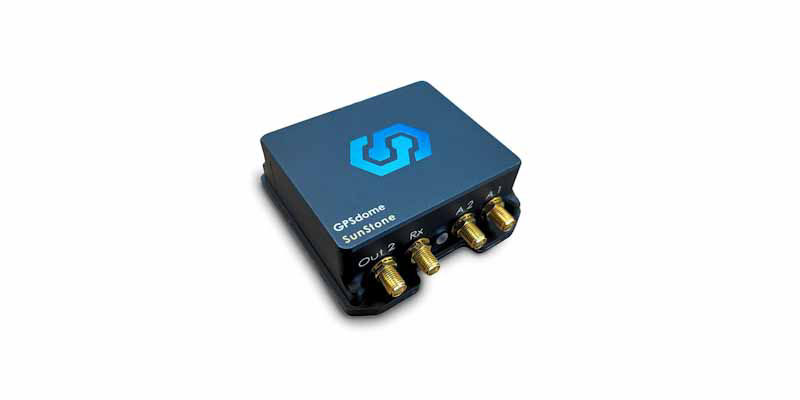

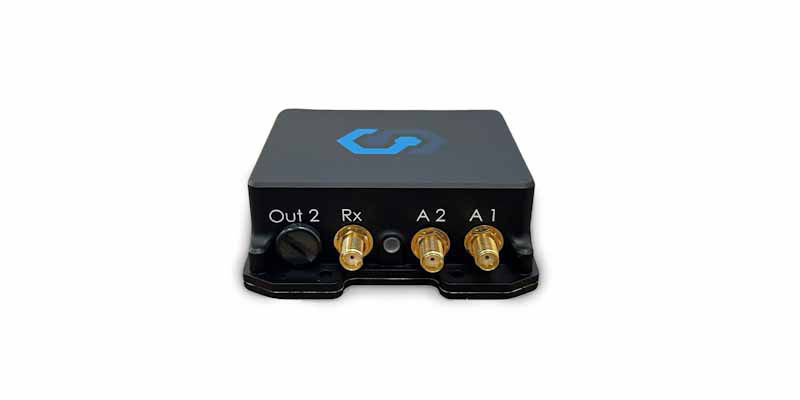

The GPSdome-SunStone, by infiniDome, is a small add-on device that provides the first layer of protection against GNSS jamming attempts, ensuring continuity of operation during low-power jamming conditions and the ability to achieve the crucial first GPS lock even in GPS-challenged environments. GPSdome is compatible with any off-the-shelf GNSS receiver and antenna.
Honeywell is collaborating with InfiniDome to jointly develop and deliver GPS signal protection systems. The solutions are intended to serve a variety of purposes for both defense and commercial applications, and to support a wide range of vehicle platforms, including urban air mobility systems, unmanned aerial systems and surface vehicles.
Honeywell is collaborating with InfiniDome to jointly develop and deliver GPS signal protection systems. The solutions are intended to serve a variety of purposes for both defense and commercial applications, and to support a wide range of vehicle platforms, including urban air mobility systems, unmanned aerial systems and surface vehicles.
Specifications
Certification
- RoHS compliant CE Compliant (PPS Version)
Width
- 78.5 mm
Weight
- 180g
Volume
- 130.1cm³
Size
- 80x78.5x28mm millimetre
Length
- 80 mm
Dimensions
- 80x78.5x28mm
Depth
- 28mm
Vibration
- Information not available now
Sustainability
- Compliant
Supply Voltage
- 6-32VDC 3W (typ.)
- Recommended PSU: Min 24W for peak demand voltage alternating current
Power Consumption
- Information not available now Watt
Power
- 3W Watt
- Min PSU 24W Watt
Environment
- IP67
Usually Bought With
- HCINS & HRVS
Setup
- Plug and Play
Typical Heading Error with HCINS
- Information not available now
Types of Products
- Anti-Jamming system
Submersion (Non-Operating)
- IP67
Shock
- Information not available now
LED
- Yes
Key Benefits
- 20 dB Attenuation
- Compatible with any off the shelf GNSS antenna
- Protect against GNSS Jamming
GNSS Capability
- GPS L1, E1 Protected frequency
GNSS
- Protect against GNSS Jamming
Component of
- Resilient Navigation System
Output
- Filtered out GNSS signals - protect the system against GPS jamming.
Operating Frequency
- 1575.42 MHz (L1, E1) hertz
GNSS Constellations
- GPS
- Optional Passthrough
External LED Status Support
- Yes
Components
- Signal processing hardware
Operating Temperature
- -40° C to 71° C
Non-operating Temperature Range
- -40° C to 71° C
Chassis Included
- Yes
