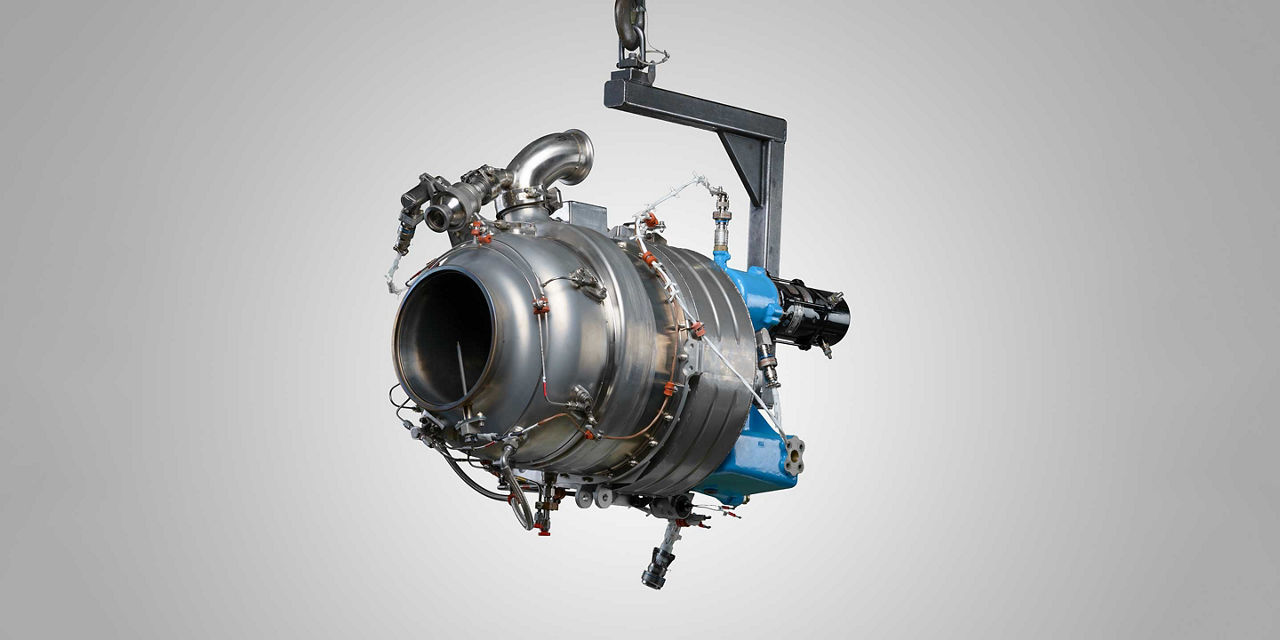

36 Series Auxiliary Power Units
Overview
The 36 Series of APUs deliver compressed air for main engine starting, air conditioning, anti-ice and heating systems. The 36-150 APU family encompasses more than 20 different variations modified for specific military and commercial aircraft application requirements. Including the 36-150 which is capable of delivering air and shaft power simultaneously or individually.
A ported shroud compressor design allows higher pneumatic performance and shaft loads while reducing ground noise up to 10dBA. From its class-leading power-to-weight ratio to its TSO-C77a Category 1 essential APU certification, the 36 Series’ long list of value-added design features has made it a staple in the APU industry. This explains why 36 Series models are available in so many bleed air, shaft horsepower and size combinations.
A ported shroud compressor design allows higher pneumatic performance and shaft loads while reducing ground noise up to 10dBA. From its class-leading power-to-weight ratio to its TSO-C77a Category 1 essential APU certification, the 36 Series’ long list of value-added design features has made it a staple in the APU industry. This explains why 36 Series models are available in so many bleed air, shaft horsepower and size combinations.
Compatible Platform
Boeing AH-64 Apache
Boeing CH-47 Chinook
Bombardier Challenger 300
Bombardier Challenger 350
Bombardier Challenger 600
Citation XLS
DEFIANT X®
Dassault Falcon 2000 Classic
Dassault Falcon 2000 EX / DX / LX / LXS / S (EASy)
Dassault Falcon 50EX
Dassault Falcon 7X
Dassault Falcon 8X
Dassault Falcon 900 C / DX / EX
Dassault Falcon 900A/B
Dassault Falcon 900EX/LX EASy
Embraer Legacy 450
Embraer Legacy 500
Gulfstream G280
Gulfstream G450
Gulfstream G550
Gulfstream G650 & 650ER
Gulfstream GIV Family
Gulfstream V
Hawker 4000
Hawker 800
Hawker 800XP
Hawker 900
Sikorsky H-60
Specifications
Certifications
- TSO-C77a Category 1
Width
- 20 in
Weight
- 100 to 150 lbs
Length
- 30 in
Dimensions
- 30 in x 20 in
Usually Bought With
- Electronic Control Unit
- Generator
Quantity Per Aircraft
- 1
Key Benefits
- Enhanced Cabin Comfort from increased cooling capability on the ground
- Lower Cost of Ownership – Maintenance costs are reduced by 40%
- Quieter pleasant cabin experience from reduced inlet noise
- Reliability – The greater than 2X increase in “time on wing” helps minimize the potential of APU related delays or cancelations
Product Number
