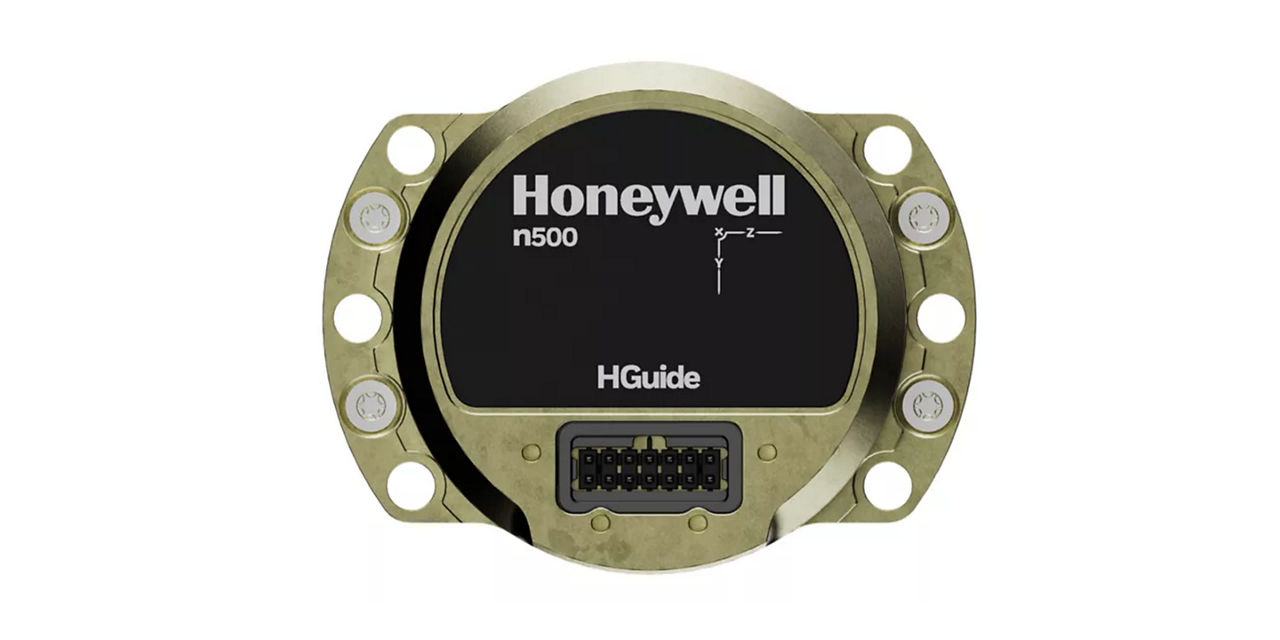

HGuide n500 Inertial Navigator
The HGuide n500 output data includes timestamped position, velocity, angular rate, linear acceleration, roll, pitch, and heading information. In dual-antenna mode, the n500 supports GNSS-based heading measurements and initialization.
Proven Performance & Reliability: Trusted navigation algorithms for air, land, and sea; world-class inertial sensors; rugged design with MTBF of 80,000 hours.
High-Precision Navigation: Delivers accurate attitude performance for superior navigation trajectories; top-tier performance for its size, weight, and price.
Flexible & Compatible: Supports multiple communication ports and GNSS receivers, including Honeywell Aerospace ’s HGuide g080.
Export-Friendly: Not ITAR controlled; ECCN 7A994—generally available without an export license.
Specifications
Accel Bias In-Run Stability (mg 1σ)
- 25 μg 1σ
Temperature Range
- -40° C to +85° C
Shock
- 40 G for 11 msec (MIL-STD-810G
Position
- H: <0.01m RTK, <0.4 m SBAS
- V: <0.025m RTK, <0.4 m SBAS
Key Benefits
- Accurate attitude performance that provides better quality navigation trajectories
- Compatible with multiple GNSS receivers, including HGuide g080 from Honeywell
- GNSS antennas and cables with Survey and UAV grade options
- HGuide Data Reader, SDK and ROS Drivers to support easy integration
- HGuide n500 IO Interface card
- Highest-performing Inertial/Navigator of its size, weight, and price
- MTBF = 80,000 hours
- Multiple communication ports
- Not ITAR controlled, its Export Control Classification Number (ECCN) is 7A994 and is generally available free of an export license
Gyro Operating Range
- +/- 400 o /s
Gyro Bias In-Run Stability
- 7 o /hr 1σ °∕hr 1σ
Accelerometer Operating Range
- +/- 20g
Weight
- 140 g
Size
- 65mm x 51mm x 35.5 millimetre
Heading
- 0.03°
Dimensions
- 65mm x 51mm x 35.5 mm
Vibration (Random)
- 7.7 g's RMS, 20-2000 Hz
Communication Ports
- 3 x 5V CMOS (UART)
Usually Bought With
- GNSS antennas and cables with Survey and UAV grade options
- HGuide Data Reader, SDK and ROS Drivers to support easy integration
- HGuide n500 IO Interface Card
Supply Voltage
- +5 VDC +/- 5%
Power
- Typical 3 Watt
Operating Temperature
- -40 °C to +85 °C
